MEYER

POLE LIGHT
OUTDOOR LIGHTING
8 994 246 059

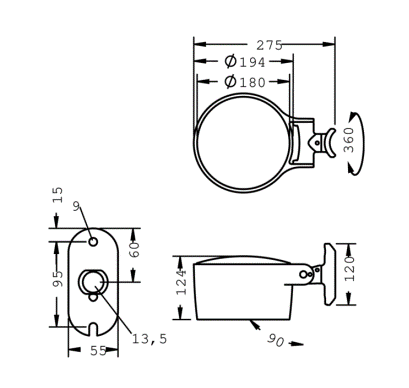

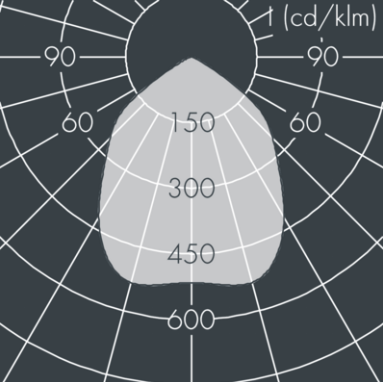

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 85, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 89°, luminous flux: 3572 lm, wattage: 46 W, delivered lumens 78 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,025 m², dimensions: Ø 194 mm, width 124 mm, weight 3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power
46W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
3572LM
Finishing
DIE-CAST ALUMINUM
IP Rating
IP67
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.

SPARK
RECESSED MAGNETIC TRACK SPOT
INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.

LIGHTFORMS
RECESSED LINEAR LIGHT
INDOOR LIGHTING

Lightplane 6 Recessed is a large recessed slot light available either with a small 12.5mm trim or in a trimless version. The luminaire can be installed both vertically and horizontally to form continuous or individual rows. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+White.

COLORS
LED NEON TUBE
OUTDOOR LIGHTING

Light source:Adopting dedicated and outdoor-specific LED, stronger reliability for outdoor application; Finished product ANSI SDCM≤5; · Structure:New anti-tension structure, Integrated anti-tension silicone extrusion process, against internal stress and external tension; Double-layer circuit conductive, double power supply guarantee, broken boards without power cut.Product applications:outdoor illumination, architectural facade lighting; IP67.
