LIGMAN

RECESSED DOWNLIGHT
INDOOR LIGHTING

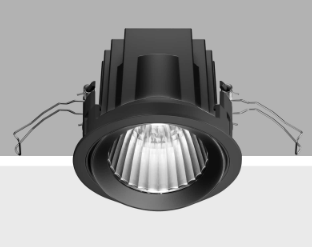

AM-80021-N-8030-ND-08

The luminaire is made of die-cast aluminium housing with powder coating. Die-cast aluminium heat sink with excellent thermal management. Aluminium reflector with white powder coating- Remote driver is included. Recessed regressed low-glare downlight family. Perfect controlled lighting environments and no fuss. Eco-friendly LED product for energy saving and visual consistency. Modular design for easy maintenance with future proofing. Propriety lens design for high LOR. Reliable thermal management for long life and lumen maintenance. Dimming options available., excellent CRI for actual colour reproduction.

Specification

Power
15W
Color Temperature
3000K
Light Source Type
9 LED
Lumen Output
1308LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LUCENT
WALLWASHER
OUTDOOR LIGHTING
Edge90 Washlight with Ø45mm black Edge aperture, kick reflector and supplied with a separate installation kit with overlap flange for finished ceilings. Available in both white or black finish as standard This product can accommodate a wide choice of LED light sources including our LED50 ONE family of modules, Xicato and Retrofit MR16 & GU10 LED lamps.
LIGHTFORMS
SURFACE TRACKLIGHT
INDOOR LIGHTING
Draco is the tallest member of our cylinder lighting family. Its strong long form utilises LEDil reflectors and Osram chips (with 1 and 2 Macadam's Ellipses colour consistency). Draco is available is in a full range colour temperatures and with integral control gear as standard.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission recessed downlights for indoor application. The warm white LED light source with a spot light distribution is composed of1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.
LED LINEAR
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.
