WE-EF

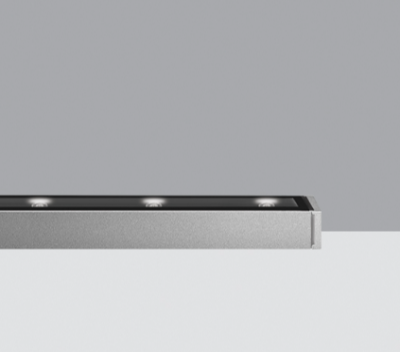

Direct light linear luminaire, designed to use monochrome LED lamps. The product can be installed using pairs of arms, ceiling/ground/wall-mounting bases, stakes, and pendant rods and cables (to be ordered separately). The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals.IP66,IK06.

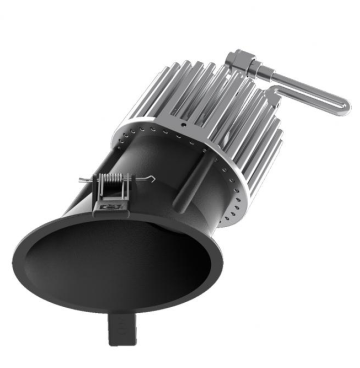

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 92 x 92 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

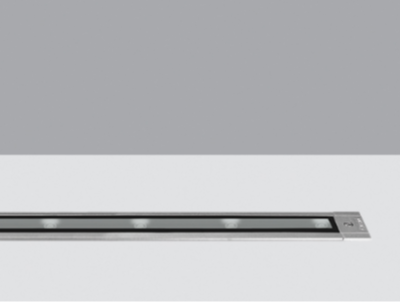

Ground- and wall-recessed using the outer casing, to be ordered separately. For ground installation a drainage channel must be created or gravel inserted for drainage under the outer casing before installation, to guarantee the degree of protection stated. For ceiling-mounting with plasterboard panels (1-30 mm thick), make the preparation openings as indicated in the instructions sheet and use the accessory with code X013 (kit containing steel cables with reinforcement plates).

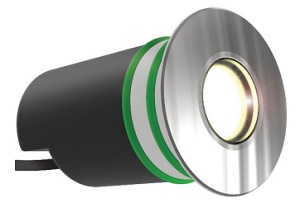

The LS9405LED has been specifi cally engineered for use in fountains and other underwater features. When high output is required, it can be deployed in its full output, 2W confi guration; If a dot of light is required, it can be set as low as 0.2W, (either by the factory or in the fi eld). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. Constructed in part from 316 Marine Grade Stainless Steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlusTM surface treatment as standard. The LS9405LED has been specifi cally engineered for use in fountains and other underwater features. When high output is required, it can be deployed in its full output, 2W confi guration; If a dot of light is required, it can be set as low as 0.2W, (either by the factory or in the fi eld). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. Constructed in part from 316 Marine Grade Stainless Steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlusTM surface treatment as standard.
