WE-EF

SPOTLIGHT
OUTDOOR LIGHTING
FLC220_139-2009
IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. DALI Interface. For 2200 K version available on request.

Specification

Power
18W
Color Temperature
3000K
Light Source Type
6 LEDS
Lumen Output
1212LM
Finishing
GREY
IP Rating
IP66
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

SPARK
TRACKLIGHT
INDOOR LIGHTING

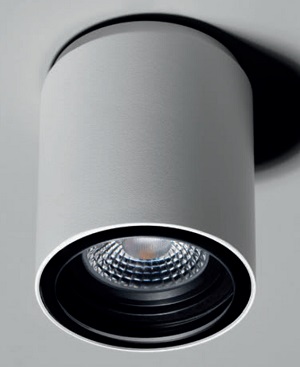

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20
LINEALIGHT
RECESSED LINEAR LIGHT
INDOOR LIGHTING

Single emission systems, lines or lines for indoor application. The warm white LED light source is composed of 156 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1470 lm, with a 122.5 lm/W nominal luminous efficacy.

The device body is made of aluminium alloy 6060 and features a white ral 9003 embossed finish, processed by means of polyester powder coating (qualicoat). The ingress protection degree is IP40.

WE-EF
SPOTLIGHT
OUTDOOR LIGHTING
IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. DALI Interface. For 2200 K version available on request.
WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout and sealable junction box included in supply.
