NEKO

LINEAR DOWNLIGHT
INDOOR LIGHTING
FF3-9302407F-BB

FUSION FF3

FF3-9302407F-BB

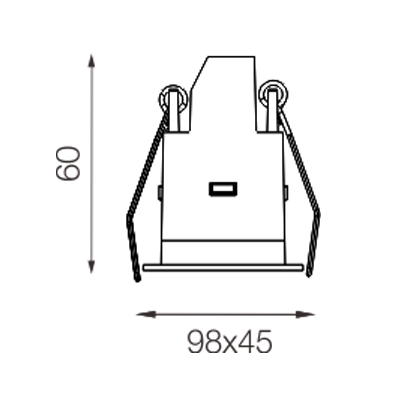

Square recessed ceiling downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; ON-OFF Driver; LED 7W; measurement 98mm x 45mm; ceiling cutout of 90mm x 37mm with a narrow mounting trim; luminaire's weight is approximately 180g; CCT 3000K with an LED Output of 650lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; narrow beam characteristic with 24° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<10); degree of housing protection according to DIN EN 60529 (IP20)

Specification

Power
7W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
450LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

COLORS
SLIM LINEAR LIGHT
INDOOR LIGHTING

Linear lighting system SKYLINE series links two points together with an outright line. The line shuttle flexibly and freely in space like horse off the reins to form a myriad of creative styling, bringing up brand-new lighting experience with the charm of purest linear.

SPARK
ZOOMABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable Zoomable downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Zoomable beam angle from 15° - 35° degree. Black finish available upon request.

WE-EF
BOLLARD
OUTDOOR LIGHTING
IP66. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Polycarbonate lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control.
LINEALIGHT

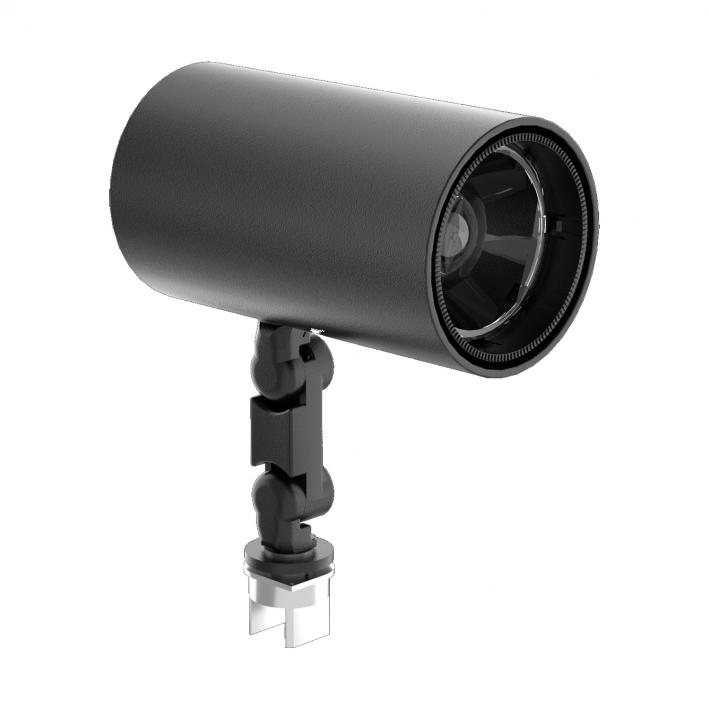

SURFACE TRACKLIGHT
INDOOR LIGHTING
Single emission projectors for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
