WE-EF

INGROUND UPLIGHT
OUTDOOR LIGHTING
EVC120_185-7670

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 1.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

Specification

Power
12W
Color Temperature
3000K
Light Source Type
6 LEDS
Lumen Output
1625LM
Finishing
STAINLESS STEEL
IP Rating
IP69
Color Rendering
CRI 80
Driver
DALI DRIVER

See more

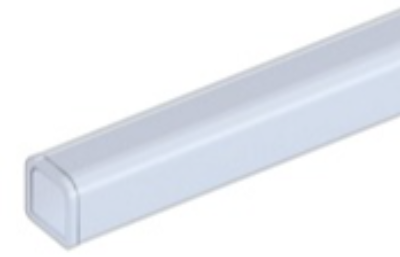

LED LINEAR
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING

Miniaturized design meets architectural scales: Its exceptional integration makes ADONIS ARCHITECTURAL an excellent choice for grazing applications and direct illumination on façades and ceilings. A multitude of options include several power levels and CCT plus a variety of light engines ranging from static white to RGBW. Polyurethane is utilized in ADONIS Architectural to make it more resistant to impact from salt water UV-light and solvents. High protection against vandalism thanks to a robust, powder-coated aluminium profile with an IK10 certification.

SPARK
RECESSED SPOTLIGHT
INDOOR LIGHTING

Recessed adjustable spotlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector come with Chrome black, White and Silver finish. Honeycomb accessory available upon request.

LUCENT
ADJUSTABLE DOWNLIGHT
OUTDOOR LIGHTING
Focus60 accent IP54 downlight with black baffle for glare control and minimal ceiling trim. This product can accommodate the Lucent LED50 ONE GEN2 (90CRI) or LED50 ONE ULTRA (98CRI). This Fire Rated product was tested in a timber joist ceiling construction consisting of double thickness plasterboard ( 2 x 12.5mm) , wooden joists and (Egger) chipboard flooring.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 1.05 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 121 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
