FLOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

ECLECTIC 90 FIXED CONE_05.8100.40

Eclectic Ø90. Non-adjustable Downlight. “Cone” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 41º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP54.

Specification

Power

13W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

809LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI 90

Driver

DALI Driver

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with four flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed pin-hole downlight made of aluminium housing with white powder coated finish. Black finish available upon request. Luminaire come with 2 different sizes, 6-8W in Ø63mm and 8-15W in Ø90mm.

KOIZUMI

RECESSED LINEAR LIGHT

INDOOR LIGHTING

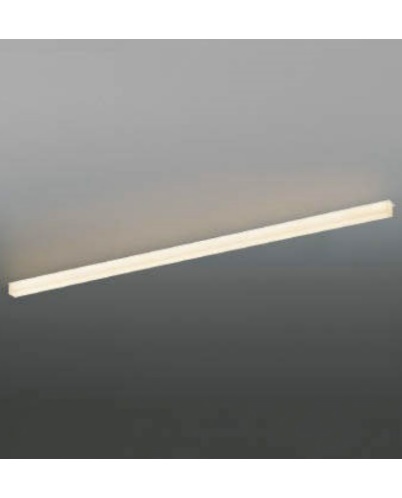

DIMMING & TUNABLE Semi Recessed mount linear light designed as an essential component of the architectural space in which it is used. A high quality light product with a focus on having a solid feel and continuity. Creates a unique lighting environment with various mounting methods, lengths, color temperatures, and control methods.
