LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

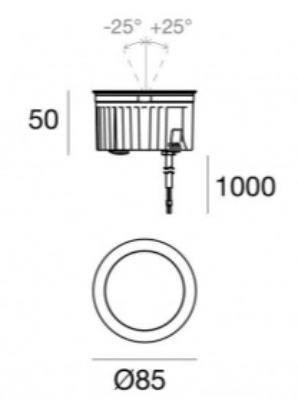

ORMA_AJ_81208M15

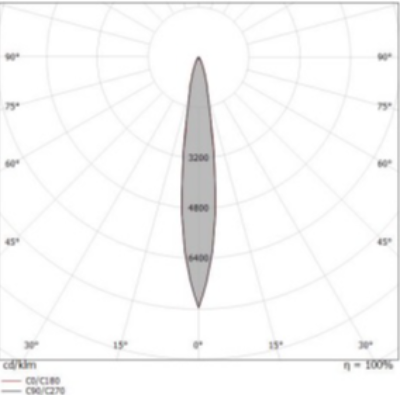

Single emission uplights for outdoor application. The super warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,10.

Specification

Power

Color Temperature

2700K

Light Source Type

LED

Lumen Output

911LM

Finishing

ALUMINIUM

IP Rating

IP68

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

APEX

LED STRIP

INDOOR LIGHTING

TUNABLE LED Strip 120 degree beam, 240 leds/m. 50mm cut length 24V voltage. Tunable color 3000K - 6000K. Suitable for Indoor and Outdoor application. IP20 / 65 / 67. DIMENSION : L1000mm x W10 mm.

LINEALIGHT

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Single emission recessed downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 748 lm, with a 115.1 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.15 kg.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.277 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 70 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
