Direct light luminaire, designed to use monochrome LED lamps, DALI 48Vdc dimmable with searching and addressing function and transparent glass cover. Ground-, wall- and ceiling-recessed. Option of installation in continuous lines of up to a max length of 10.5m only for ground-recessed installation. Made up of a body, end caps, an outer casing and caps to be ordered separately. Extruded aluminium body, with die-cast aluminium end caps complete with silicone seals. Size (mm): 340x47x83

Single emission wall lights for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 145 lm, with a 145.0 lm/W nominal luminous efficacy. The total absorbed power is 1 W The power supply cable is included and features a 1 m length.

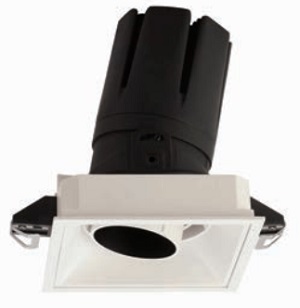

Single emission recessed downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.

Installation Recessed installation in suspended ceilings. Unventilated or ventilated ceilings.

For installation in suspended ceilings with visible T-bars, VTB (24 mm) or one-piece suspended

ceilings.

Connection For permanent connection with 230 V; built-in LED ballast in luminaire. Single

and Start luminaires in systems are equipped with 2.5 m connection cable 5 x 0.75 mm².

System units are equipped with a change-over cable (5 x 1.5 mm²) and a quick-connector

between the luminaire units. Use Con
