LINEALIGHT

Recessed luminaire with LED light source. Power supply not included. Installation frame not necessary.The ingress protection degree is IP20.

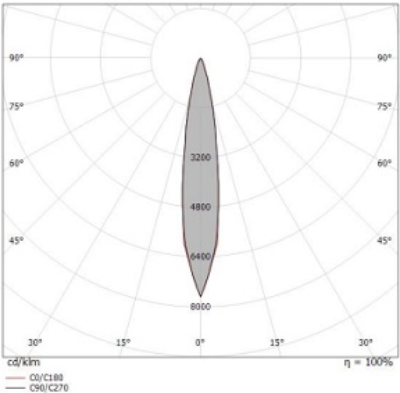

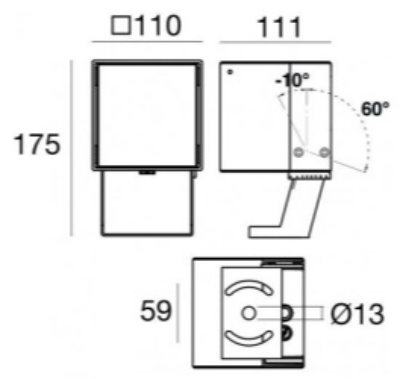

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑20°, lockable, with Heatslide mechanism for optimal heat dissipation, 0,8 m cable H07RN‑F3G1, integral driver (AC), CRI > 85, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 9°, luminous flux: 1628 lm, wattage: 19 W, delivered lumens 86 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 220 mm, width 152 mm, weight 3.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

LUNA is a range of round-shaped wall recessed luminaires with LED light sources plus a good glare control allows it to be installed in most places where a comfortable illumination is needed. LUNA is available in four different front cover designs. It has a shallow housing and can be installed in either wall or step that have limited recessing depth. The high quality LED drivers is integrated inside the luminaire for ease of installation. LUNA is frequently used to illuminate stairways, pathways and wall where a general or directional light is needed.

MATERIAL CHARACTERISTICS

Aluminium die cast housing in EN AB-47100 (low copper content) with high resistance against corrosion. Extruded EN AW-6060 aluminium structure (bollard version) with high corrosion resistance. Stone wash surface treatment prior to painting process. Steel screws treated with an advanced anticorrosive coating. Silicone Gaskets. Extra-resistant Painting Process:

Extra-resistant exterior coating. Product suitable for applications in high-humidity environments, C5 ZONE
