LIGMAN

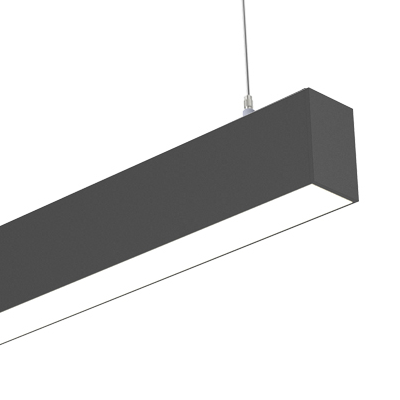

A continuous-row LED lighting system created by trunking unit and LED luminaire. It appears a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking rail are perfectly matched to each other. Optics available 30°, 60°, 90°, 120°, Asymmetrical, Double asymmetrical and Diffuser.

150mm Recessed hole high downlight, made of die cast aluminium housing and mirror finish cone.

APEX COB LED Strip come with various CCT from 2700K to 6500K, mini PCB, high color rendering index 90. 50,000hrs lifespan. 480LEDs/M. Able to work with dimming and non-dimming driver. Various types of aluminium profiles upon request. IP20. DIMENSION : (L)1000mm X (W)10mm, Cutting length 50mm.

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 3 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑15, 0,8 m cable H05RN‑F3G1, integral driver (AC/DC), CRI > 80, max 2 SCDM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 4°, luminous flux: 125 lm, wattage: 3 W, delivered lumens 42 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions: Ø 135 mm, width 131 mm, weight 1.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
