IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

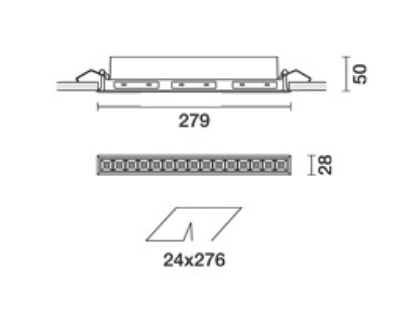

LASER BLADE XS_Q517.01

Linear miniaturised recessed luminaire with 15 optical elements for LED lamps - fixed optics. Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Main body with die-cast aluminium radiant surface, version with perimeter surface fram. Metallised, thermoplastic, high definition Opti Beam reflectors, integrated in a set-back position in the anti-glare screen.

Specification

Power

33.8W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

2241LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

DALI DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 arrayled LEDs. The device body is made of aluminium and features a embossed black ral 9005 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.32 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 18 W. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 89 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 65 x 65 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

PROJECTOR LIGHT

OUTDOOR LIGHTING

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation.

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire made of copper and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit, 220-240 V x 0/50-60 Hz DC 176-264 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK05. Protection against mechanical, impacts < 0.7 joule, r – Safety mark, c – Conformity mark.
