ALLEGRO LINEAR AC DW_300MM

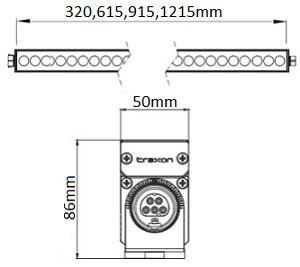

The Allegro Linear AC DW family is a slim-profile, AC line powered high brightness luminaire. The family is controlled via DMX512 and is available in four length from 320mm to 1215mm with tunable white and various optics. The simplicity of the luminaire's topology means it can be easily daisychained to form long runs. Remote Device Management (RDM) circuits are built into each luminaire that enables extensive control and monitoring of the entire lighting installation. IP66, IK07. DIMENSION: 320(L)x50(W)x86(H)mm.

Specification

Power
15W/300MM
Color Temperature
3000K
Light Source Type
LED

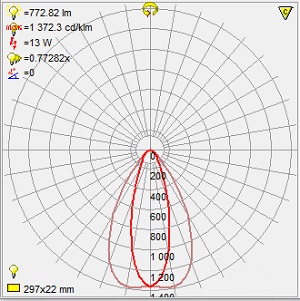

Lumen Output
773LM/300MM
Finishing
ALUMINIUM
IP Rating
IP66
Color Rendering
CRI90
Driver
DMX 512

See more

IGUZZINI
RECESSED DOWNLIGHT
INDOOR LIGHTING
Ring luminaire with 18 optical elements for LED lamps - fixed optics. The optic system guarantees a high level of visual comfort and no glare. The body includes a radiant surface made of die-cast aluminium. Minimal (frameless) version for flush with ceiling installation. For recessed installation in a false ceiling a specific adapter is required that is available with a separate item code. High definition reflectors made of thermoplastic material vacuum-metallised with aluminium vapours, integrated in a set-back position in the anti-glare screen.
LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68,IK08.
LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING
Single emission projectors for outdoor application. The super warm LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2349 lm, with a 130.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66, IK10.
CDN LIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.
