Product Detail | Bloxlimited

BEGA

INGROUND FOOT LIGHT

OUTDOOR LIGHTING

84175K3

In-ground wall washer up light makes it possible to fully illuminate a vertical surface, like façade and from the ground to the lower edge of the roof. The lower limit of the light distribution is a straight line, without the usual “light cone”. The luminaires can be driven over by vehicles with pneumatic tyres. Luminaire must not be used for installation in road lanes, where the fixture is exposed to a horizontal strain due to braking, acceleration and change of direction. Luminaire cover made of cast bronze and luminaire housing made of cast aluminium. Recess housing made of stainless steel. Reflector surface made of pure aluminium. IP67, IK10

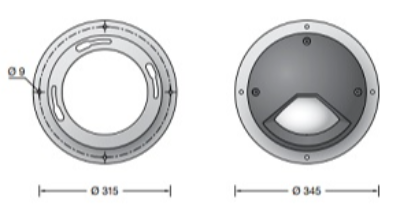

DIMENSION : Ø345*H110MM

Specification

Power

27.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2626LM

Finishing

ALUMINIUM

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

WE-EF

SPOTLIGHT

OUTDOOR LIGHTING

IP66. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. DALI (only 4W available) Class I. Knuckle permits 340° rotation, forward tilt 73° and backward tilt 90°. Remote 24VDC power supply to be ordered separately.Optical accessories are factory-installed. To be specified at time of ordering.

LIGMAN

BOLLARD

OUTDOOR LIGHTING

Outdoor bollard made of die-cast aluminium housing extruded aluminium profile. Column pre-treated before powder coating ensuring high corrosion resistance. Single cable entry. One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket.Frosted glass diffuser. Integral control gear. IP65,IK09.

LIGHTFORMS

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two wallwasher floor light elements; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
