FORMALIGHTING

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

3466BN11-8030000029

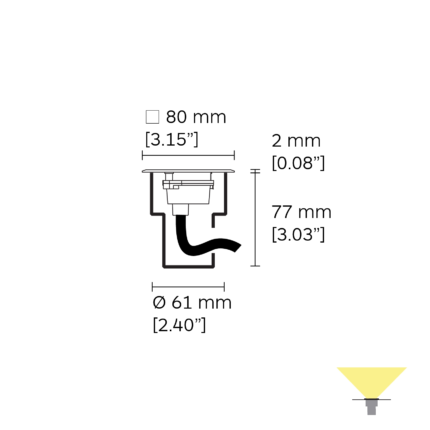

Recessed step/driveway uplight. InoxLED trim in stainless steel and light body in cast aluminium. Inclusive of toughened safety convex clear polycarbonate and weatherproof durable silicone gasket and external counter sink captive screws made of stainless steel. Thermoplastic box for in-ground recessed installation included. Recessed box for installation in concrete to be ordered separately.

Specification

Power

1.1W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

117LM

Finishing

GREY

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

SPARK

LINEAR DOWNLIGHT

INDOOR LIGHTING

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.

MEYER

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, with grub screw, ceiling mount: 2 drilled holes Ø 4 mm, spacing 86 mm, cable gland: Ø 4‑11 mm UP, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral control gear, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 33°, luminous flux: 727 lm, wattage: 13 W, delivered lumens 58 lm/W, protection type IP65, protection class I, impact resistance IK08, dimensions: Ø 149 mm, width 121 mm, weight 2 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
