Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered high effiency safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, wall box with 2 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 214 mm, cable gland: 4x Ø 7‑10 mm, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, luminous flux: 4176 lm, wattage: 37 W, delivered lumens 113 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,057 m², dimensions (L×H×W): 324 × 85 × 183 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.

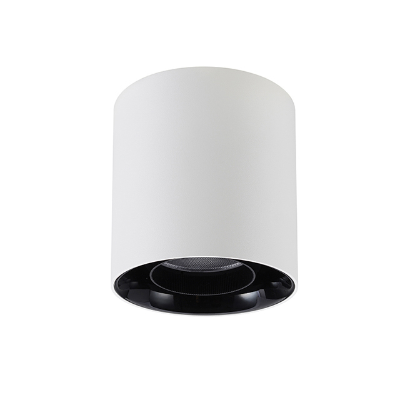

Altopiano downlights expands the possibilities of ambient lighting in the hospitality and residential sectors: it combines a versatility of 3 different sizes and shape with a multiplicity of atmospheric light colours. Range from 2200K to 4000K, RGBW and Dim to Warm intensity/colour adjustment. Altopiano downlights offer great visual comfort, with their recessed optics and possibility of building in a honeycomb louvre and anti-glare shield with concentric rings, as well as a UGR 19 with the narrow, medium and wide optics.The body is made of thermally conductive technopolymer (with a thermal conductivity equal to that of stainless steel), giving it outstanding corrosion resistance. IP66.

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 12 powerled LEDs. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.39 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be wall lights, ceiling or floor-mounted with an outer casing, code 98843 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
