SPARK

INGROUND UPLIGHT

OUTDOOR LIGHTING

SPK-RGL65

Die cast aluminium inground uplighter luminaire, silicon rubber sealing ring IP68 negative-pressure protection cable patents. Professional structure design prevents the embedded parts from falling out. IP67, IK07

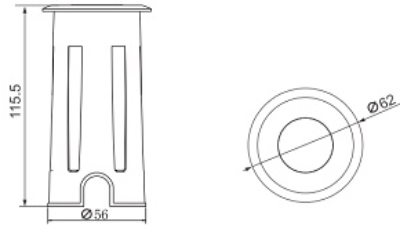

DIMENSION : Ø62*H115.5

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

105LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

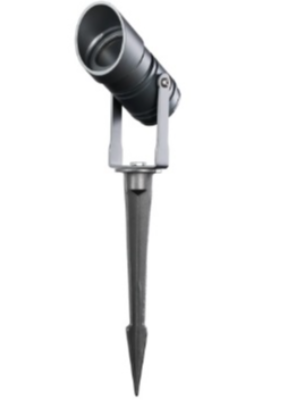

SPARK

SPIKE LIGHT

OUTDOOR LIGHTING

Outdoor Spike light made of die-cast aluminium housing and in powder coated black finish. Silicon rubber gasket and external driver. Suitable for garden, balconies terraces and walkway application. Luminaire come with 3 differents wattage 5W, 7W and 12W.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable oval-hole downlight made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 18°, luminous flux: 4390 lm, wattage: 48 W, delivered lumens 91 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 140 × 163 × 190 mm, weight 2.76 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
