Products

IGUZZINI

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
REFLEX_N090

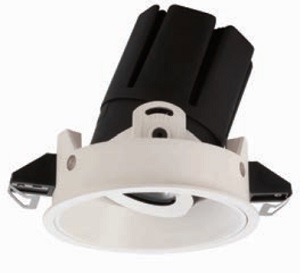

Round adjustable luminaire made of die-cast aluminium body. Lower reflector vacuum-metallised with aluminium vapours with an anti-scratch protective layer. Anodised aluminium upper reflector. Black, zinc-plated sheet steel bracket. The luminaire can be rotated 30° relative to the horizontal plane and 358° about the vertical axis. The luminaire is fitted with mechanical locks for light beam aiming.

Specification

Power
19.1W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
966LM
Finishing
WHITE
IP Rating
IP23
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

IGUZZINI
RECESSED DOWNLIGHT
INDOOR LIGHTING

Round recessed luminaire with contact frame. Adjustable version that tilts by a maximum of 30°. The main swivel body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector - medium optic. Structure with die-cast aluminium external contact frame with a single white finish. Steel rotating parts. The ring inside the swivel body is made of thermoplastic available in a range of painted and metallised finishes

PHOS
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
The Eyeconic Round Fixed is a recessed, fixed downlight with an ø80mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING
Recessed luminaire with round mounting trim in cast aluminium with springs for trim installation on a ceiling thickness of 1-25mm. Zero In & Out is available in Dia 40 or 66mm. The fully retractable light head is tillable up to 90° and rotatable horizontally 355°. Its unique pull-down mechanism, enables it to function as either a downlight or an exposed lamp able to emulate a surface or track fixture. Bean angle avaiable 11°. 16° and 32°.
XAL
SURFACE LINEAR LIGHT
INDOOR LIGHTING

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface jet black powder coated; suitable for wall or ceiling mounting; lighting profile (end cover pre-assembled) available in advance for installation; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 4000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90;
