Product Detail | Bloxlimited

TRAXON

LED DOT

OUTDOOR LIGHTING

ALLEGRO DOT L DW_DIFFUSED

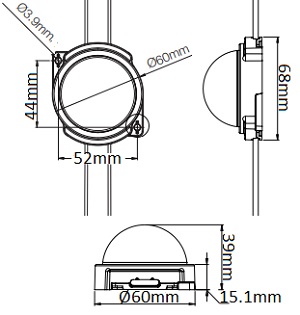

Allegro Dot DW is the next generation of intelligent media dot family. It is an extra bright Dynamic White clear or diffused dot. The dots can provide advanced features and flexibility for lighting design and project execution. Customizable pitch containing up to 46 dots max in Dot M and 28 dots max in Dot L. IP66&67. DIMENSIONS: Ø68x60(L)x39(H)mm.

Specification

Power

2.5W

Color Temperature

TW - 2700K-6500K

Light Source Type

LED

Lumen Output

192LM

Finishing

WHITE

IP Rating

IP67

Color Rendering

CRI80

Driver

DMX 512

FLOS

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Eclectic Ø90 Dim To Warm. Adjustable Downlight (40º tilt, 360º rotation). “Cone” style façade. Necessary installation pre-frames, not included (to be orderedseparately). Recessed position ofthe LED: 41º cut-off angle. IP20 water tightness (for IP54, pleaseask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP20.

XAL

CEILING LIGHT

OUTDOOR LIGHTING

Round luminaire housing in die-cast aluminium; surface powder coated; fitted bezel in rolled, seamless welded aluminium profile; suitable for wall or ceiling mounting; completely homogeneously illuminated, satinised PMMA cover; same luminance for all size versions; energy-efficient LEDs with very good colour rendering; luminaire with 2 cable openings and plug-in terminals for through wiring. IP54, IK07 DIMENSION : D600MM * H80MM

ELR

WALLWASHER

INDOOR LIGHTING

ASYMMETRIC WALL WASHER RECESSED

DOWNLIGHT LUMINAIRE

DIAMETER 70mm

HEIGHT 78mm

LINEALIGHT

PENDANT

INDOOR LIGHTING

Single emission pendant luminaires for indoor application. The warm white LED light source with a wide flood light distribution is composed of 24 powerled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 5.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
