TRAXON

LED DOT
OUTDOOR LIGHTING
ALLEGRO DOT S DW_DIFFUSED

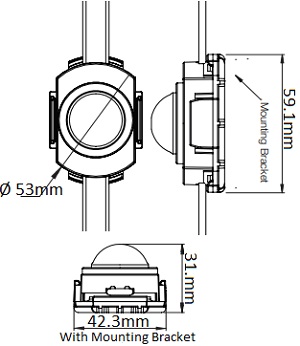

Allegro Dot DW is the next generation of intelligent media dot family. It is an extra bright Dynamic White clear or diffused dot. The dots are constructed on a flexible cable with customizable pitch. The dots can provide advanced features and flexibility for lighting design and project execution. Customizable pitch containing up to 62 dots max in one string. IP66,67

Specification

Power
1W
Color Temperature
TW - 2700K-6500K
Light Source Type
LED
Lumen Output
64LM
Finishing
WHITE
IP Rating
IP67
Color Rendering
CRI80
Driver
DMX 512

See more

LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING

Single emission projectors for indoor application. The natural white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 4000 K and a CRI 98; the source luminous flux is 2888 lm, with a 180.5 lm/W nominal luminous efficacy. The total absorbed power is 18 W.

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING
Outdoor inground uplights come with a wide flood light distribution of 1 power LED. Luminaire body is made of AISI 316L steel and features a steel finish, processed by means of shot peening; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66. IK08
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.500 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99765 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
XAL
SUSPENDED LINEAR LIGHT
INDOOR LIGHTING

Rectangular luminaire housing with rounded edges in aluminium; extremely flat design (only 15mm); modern shape in elegant design for discerning requirements; surface black powder coated; suspended luminaire with 1500mm cable suspension; with integrated tool-less suspension height adjustment; incl. transparent feed; direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving; light control via highly reflective reflector material; indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination; microprismatic PMMA cover; completely homogeneous illumination; same light density for all surface lights with the same components;
