BEGA

POLE LIGHT
OUTDOOR LIGHTING
99519K3

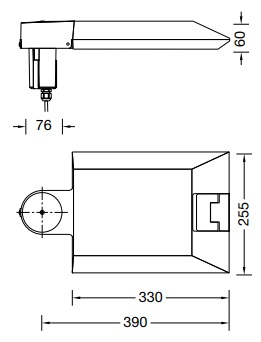

Luminaire made of aluminium alloy, aluminium and stainless steel. Safety glass, antireflection-coated. Silicone gasket. Reflector made of pure anodised aluminium. Toolless closure. For pole top 76 mm. Inner diameter of the pole min.62 max.70 mm. Slip fitter insert depth 90 mm. Connecting cable X05BQ-F 4 1 Cable length 8 m LED power supply unit 220-240 V x 050-60 Hz DC 176-264 V Dimmable 1-10 V A basic isolation exists between power cable and control line. Luminaire Protection class IP 66. Dust-tight and protection against strong water jets. Safety class II 2. Impact strength IK08 Protection against mechanical impacts 5 joule, r Safety mark, c Conformity mark. Wind catching area 0.03 m.

Specification

Power
34.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
4989LM
Finishing
GRAPHTE
IP Rating
IP66
Color Rendering
CRI80
Driver
DALI DRIVER

See more

SPARK
LED STRIP
INDOOR LIGHTING

Flexible LED Strip with silicon sleeve and 156LEDs/m in ultra slim thickness of 1.2mm strip use together with aluminum profile. Cutting length 38mm DC24V DIMENSION : L1000*W5mm

LINEALIGHT
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING

Outdoor inground linear light come with a elliptical light distribution is composed of 36 power led. Luminaire body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. IP67, IK10


CDN LIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.

WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.
