PERISKOP_90519M15

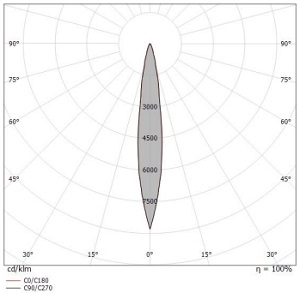

Single emission projectors for outdoor application. The super warm LED light source with a spot light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 659 lm, with a 109.8 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66,IK05.

Specification

Power
6W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
485LM
Finishing
WHITE
IP Rating
IP66
Color Rendering
CRI80
Driver
ON/OFF DRIVER

See more

FORMALIGHTING

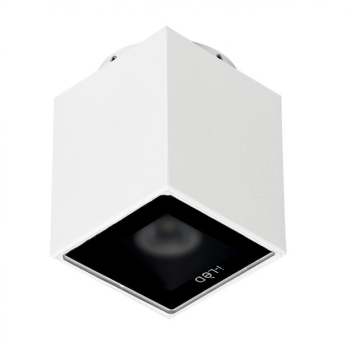

SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING

LED Built-in with body - High Power LED - Power LED. 3-step MacAdam

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.12 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 40 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
COB STRIP
INDOOR LIGHTING

COB Strip chips are fixed on PCB inverted COB gold-free technology. Great heat-dissipation and work stably and more flexible. 504LEDs/m no dark dots, perfect performance use together with aluminum profile. Cutting length 42mm DC24V . DIMENSION : L1000*W10mm

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.510 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99912 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
