UFO LIGHTING

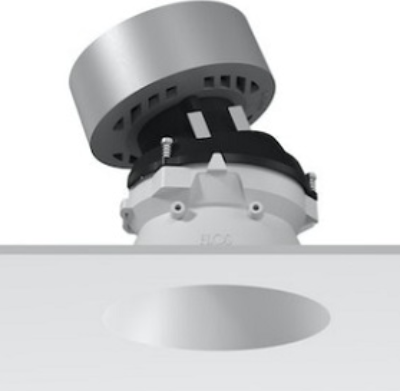

Round recessed luminaire with contact frame. Adjustable version that tilts by a maximum of 30°. The main swivel body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector - medium optic (25°). Structure with die-cast aluminium external contact frame with a single white finish.

IP68, dot free linear light line with a 16 mm x 16 mm cross section. Opal PVC extrusion body sealed with ultrasonic welded end caps and a twin barrier against water ingress. Special PVC material composition, which is Chlorine resistant for continuous immersion in water with chlorine concentration up to 5 ppm. Length are freely configurable between 544 mm and 5,044 mm in steps of 62.5 mm. Fixture comes with a backside cable exit with 5 m open end cable (chlorin resistant). Light source assembled using state of the art automated Reel-to-Reel production process supporting LED Linear™ Tj Away® thin flexible circuit board technology.

surface mounted (spike); Power consumption: 25W; Power supply: 24Vdc; Lumen output at source: 1890 lm (3000K, 25W, CRI 90); Delivered lumen output: 1575 lm (3000K, 13°,25W, CRI 90); 1 COB LED, 2-step MacAdam, 55 000h L70 B10 (Ta 25°C); LED colour: 3000K; Optics: 29°; CRI Colour Rendering Index: >90; Body material: body made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe
