LUMASCAPE

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, lockable, tilt range: 0‑15°, lockable, 0,8 m cable H07RN‑F3G1, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 55°, luminous flux: 838 lm, wattage: 11 W, delivered lumens 76 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 180 mm, width 152 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks.

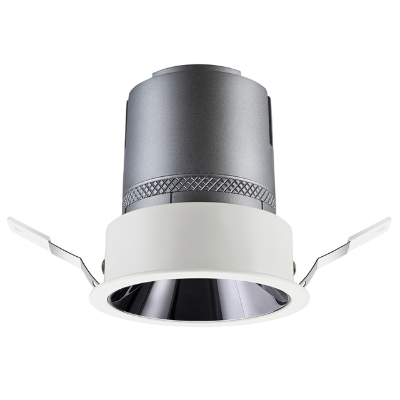

Recessed adjustable Pin-hole downlight made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

The Energi Savr Node (ESN) family is a group ofmodular products for the control of lighting loads andmotor loads. PRO LED+ Phase Adaptive Power Modules can beused in a QS Standalone system with an iOS EnergiSavr Application, a Quantum system, myRoom Plussystem*, or an Athena system.• Includes QS link for seamless integration of lightsand controls.

Wall mounted luminaire. IP rating IP 65

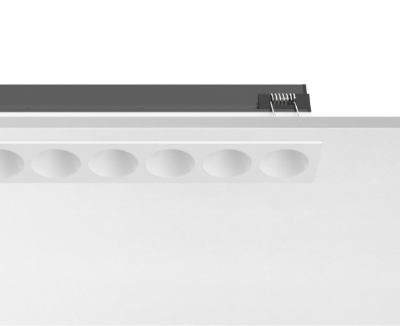

WALKER is a wall recessed fitting designed to guarantee a wide distribution of light and directed downwards. Acid-etched toughened glass 4 mm thick. Colour rendering index CRI 90.
