LUMASCAPE

WALL LIGHT

OUTDOOR LIGHTING

LS321LED - 6H6 NR

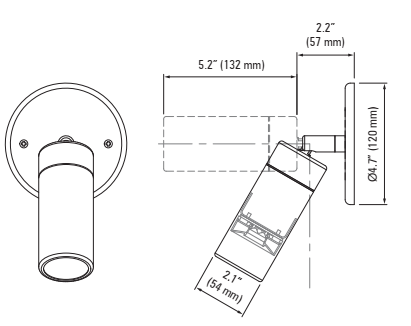

The LS321LED Pagoda is a compact, adjustable, direct or indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed from either copper or powder-coated aluminium, providing a variety of aesthetic options. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

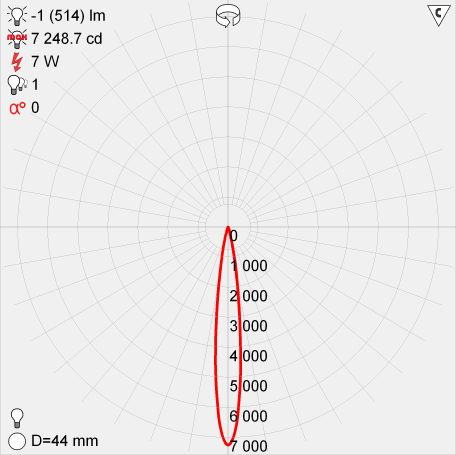

512LM

Finishing

BLACK

IP Rating

IP65

Color Rendering

CRI >80

Driver

ON/OFF DRIVER

SPARK

WALLWASHER

OUTDOOR LIGHTING

Outdoor aluminium housing wallwasher luminaire in one pc lens, primary light distribution technology, anti-corrosive and UV-resistant. T-shaped bracket can be mounted from 0-180 degrees. Suitable for outdoor lighting applications such as park, station, bridge, club, billboard, road protective railing and wall facade of building etc. IP66

LIGHTFORMS

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

The ValuePlane luminous panel luminaire is a budget-friendly fixture available with direct distribution that may be suspended or surface mounted. The luminaire is offered as an individual, single-panel fixture OR in a multi-panel configuration for extended runs of any length with the addition of blank joiner sections. Consult specification sheet to specify a multi-panel extended run.

LINEALIGHT

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Single emission ceiling lights for outdoor application. The super warm LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 770 lm, with a 128.3 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 0.675 kg. The total absorbed power is 7.5 W. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
