LUMASCAPE

SPIKE LIGHT

OUTDOOR LIGHTING

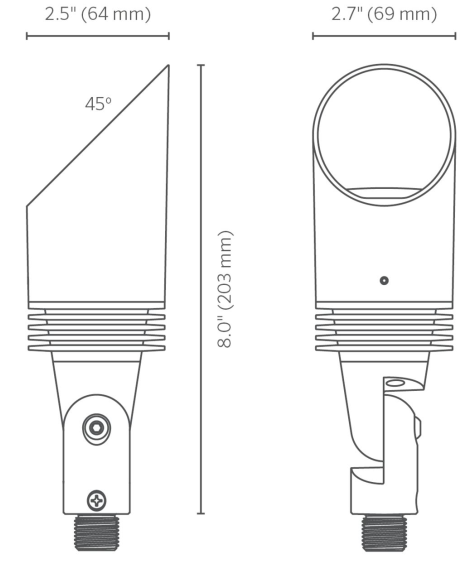

dAXS7 3LED K27 SP

The dAxis-7 is an expertly engineered directional luminaire with a 45° or 60° shield to illuminate a variety of spaces in 3, 6 or 9 LED. A zoning/dimming version is also available for use with ZDClink® Controllers.

Specification

Power

4.4W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

751LM

Finishing

ALUMINIUM

IP Rating

IP65

Color Rendering

CRI >80

Driver

ON/OFF DRIVER

SPARK

SUSPENDED DOWNLIGHT

INDOOR LIGHTING

Suspended mount downlight, luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

FLOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Eclectic Ø70. Non-adjustable Downlight. “Soft” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 47º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP54.

IGUZZINI

WALLWASHER

OUTDOOR LIGHTING

Recessed luminaire that can be installed in walls and floors . It is designed to use white monochrome LED lamps, powered with a continuous current of 350/500mA per luminaire. The D = 80 mm round frame has hidden screws, an AISI 304 stainless steel body and frame and an extra-clear, sodium - calcium tempered glass cover. The luminaire is fixed to the outer casing using special locking seals that hold it in place. The unit comes complete with LED circuit. The product's wiring system features an A2 stainless steel cable gland with a 1800 mm long H05RNF type 2x1 mm² output power cable. The cable is equipped with an anti-transpiration device (IP68) that consists of a silicone-coated joint located on the power cable.
