UNIOS

Extruded EN AW-6060 aluminium profile, die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

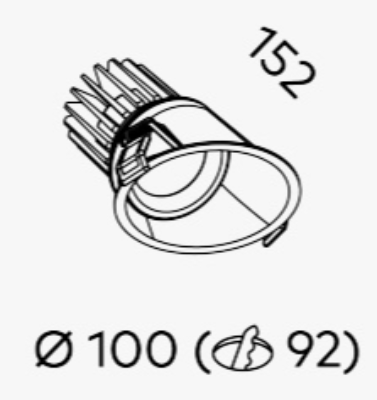

Moto-Combo PRO are intelligent due to their inbuilt memory, allowing them to instantly recall pre-recorded position, color temperature, beam angle and dim level settings previously recorded via CASAMBI™ control app. The luminaire body made of aluminium and mounting ring of mild steel. Brackets for trim installation on ceiling thickness max. 25mm. Zoom version includes a third motor that controls a special lens, which allows beam angle adjustment.

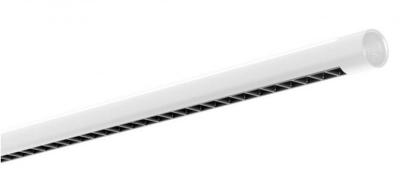

Sleek design luminaire for general lighting manufactured to length. Available as pendant, surface and recessed. Pleasing form factor of 42mm*62mm. 3 different mounting possibilities for homogeneity throughout a building. It is therefore possible to utilize the same product at different locations using different construction types. Freely scalable up to 4m.

LED luminaire come with 2 types of LED pitch 7.1 or 17.8mm for profile and cove lighting. 5 types of wattage 2W/m to 15W/m in same LED pacakge to match CCT. High efficient LED package achieving up to 185 lm/W.
