CLEAR LIGHTING

Lightplane 1 Concave is a suspended, wall or surface mounted luminaire with direct, indirect or direct-indirect distribution. The fixture features arching, interior sides that lead to a slightly recessed lens within the channel. With a cross section dimension of just 50mm, the Lightplane 1 Concave body houses a LED driver integral to the channel creating a remarkably low-profile luminaire.

Surface mount linear light combine with maximum visual comfort with impressive efficiency. All versions are dimmable or conveniently controllable via DALI, allowing for flexible adaptation to different lighting moods. Precisely engineered optics ensure excellent glare control and uniform, clearly defined light distribution. Avail in 3 lengths, they combine variable lighting with a clear design language and are perfectly suited for sophisticated interiors where technical requirement.

Lightplane 3.5 Recessed is a low-profile, 89mm recessed slot light. The luminaire can be installed both vertically and horizontally to form continuous or individual rows. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+White. A Low UGR option is also available with prismatic lens.

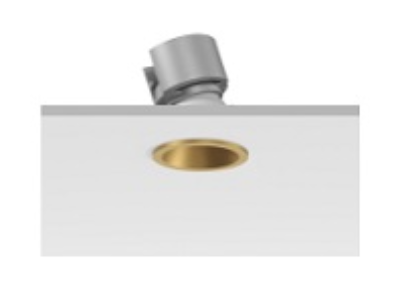

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 490 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.12 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 4 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 40 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
