LUMASCAPE

SPIKE LIGHT

OUTDOOR LIGHTING

LS9402LED - 2 H6 SS LN 23 U 006

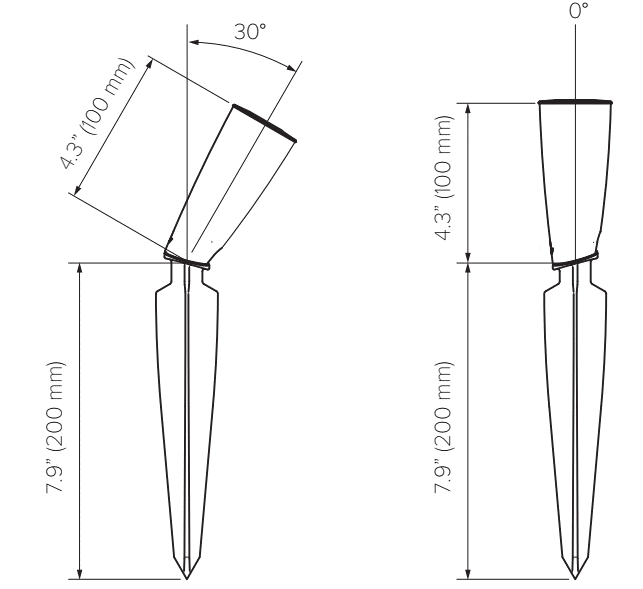

The LS9402LED is a brilliant LED stake mounted accent, featuring dimming control options: When high output is required, it can be deployed in its full output, 2W configuration; If a dot of light is required, it can be set as low as 0.2W, (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. This luminaire also comes with a stake that can be set at 0oor 30o to suit any landscape or planter application. Constructed in part from 316 Marine Grade Stainless Steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlusTM surface treatment as standard.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

170LM

Finishing

STAINLESS STEEL

IP Rating

IP68

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 3 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.450 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.250 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99972 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

FORMALIGHTING

TRACKLIGHT

INDOOR LIGHTING

Advanced, multi-functional LED track mounted projector, tiltable vertically 0°-90° and rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness adjustability, and lens rotation. Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo. High-precision optics for sharp outlines and high degree of lighting uniformity.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 96 topled LEDs. The luminaire body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK08.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission recessed downlights for indoor application. The super warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 1487 lm, with a 135.2 lm/W nominal luminous efficacy.

The device body is made of uv resistant polycarbonate and features a white finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 11 W. The power supply cable is included and features a 0.15 m length.

The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard).

Compliant with the EN 60598-1 standard and its specific provisions.
