ECOSENSE

Unique mini square-shape structure design, Aluminum alloy housing, Multiple light distribution options. Easy for installation, replacement and maintenance, Compact design for versatile use in the outdoor applications, such as ancient building, temple, small town, etc.

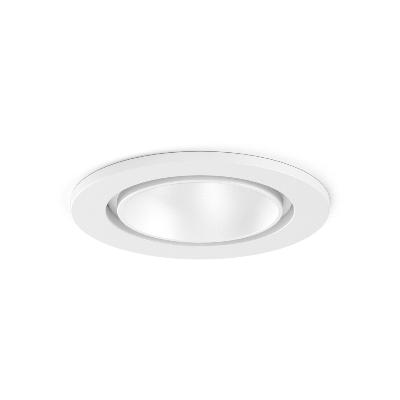

Fixed round mini-recessed luminaire with contact frame. The LED is set back to minimize direct glare. The recessed body is made of machined aluminium and the inside of the ring of thermoplastic available in a range of painted and metallised finishes. PMMA - medium (25°) high resolution optic lens. High color rendering index 2700K LED. Tool free assembly. Power unit available with a separate code no.

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Clear safety glass Silicone gasket Optical silicone lens · BEGA Hybrid Optics® Reflector surface made of pure aluminium Rotation range of floodlight 350°. IK09 Symmetrical wide beam light distribution Half beam angle 64° By changing the diffuser lense it is possible to alter the symmetrical light distribution into a flat beam light distribution. Luminaire data for the light planning program DIALux for outdoor lighting, street lighting and indoor lighting. The ingress protection degree is IP65,IK09.

Luminaire made of copper and bronze alloy, Opal glass, Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit, 220-240 V x 0/50-60 Hz, DC 176-264 V. Safety class I Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, r – Safety mark, c – Conformity mark.
