ECOSENSE

FLOODLIGHT

OUTDOOR LIGHTING

RISE F080 SINGLE_MO_20D

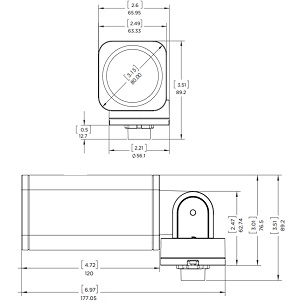

RISE is a system of beautifully designed outdoor rated luminaires that provide efficient and powerful light using the latest in LED technology. RISE F080 single is a powerful and compact LED light fixture, delivering up to 1170lumens, that can be used in spot, accent, landscape and floodlight applications. Its unique MARCO lock feature allows for full 180 degree tilt and 360 degree pan aimability using only one tool. DIMENSION : W63.33*H89.2*L177.05MM

Specification

Power

7.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

346LM

Finishing

GREY

IP Rating

IP66

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

BEGA

BOLLARD

OUTDOOR LIGHTING

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Colour graphite Safety glass with optical structure Silicone gasket Luminaire with mounting base made of hot-dip galvanised steel according to EN ISO 1461 for bolting on a foundation or anchorage unit Base plate with 2 elongated holes Width 9 mm · 220 mm spacing Connection box 71 084 for through-wiring – for 2 cables up to 7 × 6

PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

The Eyeconic Mini Trim Fixed is a recessed, fixed downlight with a Ø62mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

PLATEK

INGROUND UPLIGHT

OUTDOOR LIGHTING

Outdoor inground uplight body and front locking trim made of AISI 316L stainless steel. IP68 Degree of protection with Full Dry system which avoids condensation inside the product. The Installation of the recessed housing in cast concrete with a 20-30 cm gravel soak away. Only an IP68 connection to the power supply can guarantee the same protection to the fixture.
