ACCLAIM

Often used in entryways to select Scene 1 and Off.• Large, rounded buttons are easy to use.• Backlit buttons with optional engraving make it easy tofind and operate the Wallstation in low light conditions.• Optional button engraving is angled up to the eye foreasy reading.• The LEDs next to each button are used duringprogramming and provide feedback when the buttonsare pressed.• Receives up to two contact closure inputs via aconnector on the back of the Wallstation.

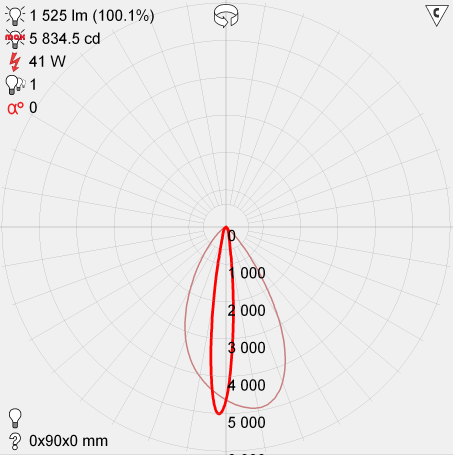

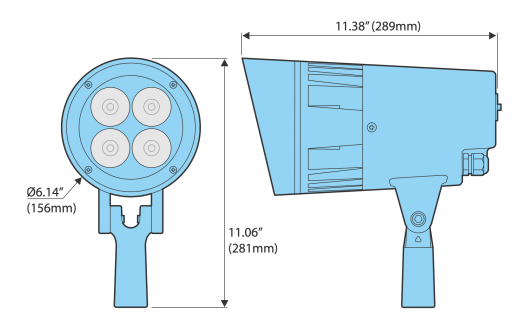

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, service life L70/B > 50.000 h, Beam angle (fwhm): 29°, luminous flux: 1066 lm, wattage: 55 W, delivered lumens 19 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Flexible RGBW LED Strip with silicon sleeve and 60LEDs/m in thickness of 2.1mm strip use together with aluminum profile. Cutting length 100mm DC24V DIMENSION : L1000*W12mm

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different type of bean angles.
