ACCLAIM

FLOODLIGHT

OUTDOOR LIGHTING

DDW-211-AAMN

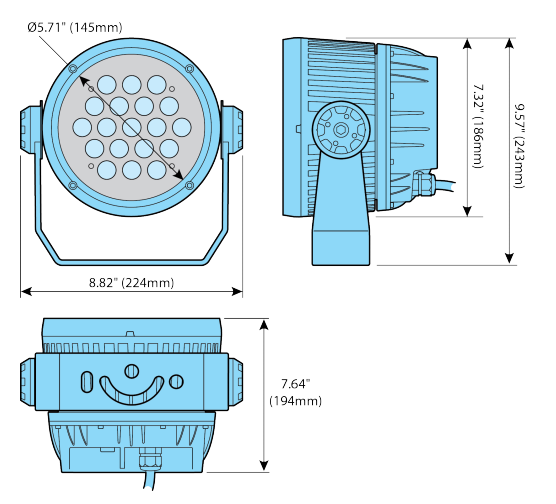

Dyna Drum EO SCS is a high output, outdoor rated, multi-color LED floodlight. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. It comes with a narrow 8º beam standard, with optional quick-change spread lenses for wider applications. It is ideal for facade lighting applications and as an area floodlight.

Specification

Power

59W

Color Temperature

3000K

Light Source Type

LED

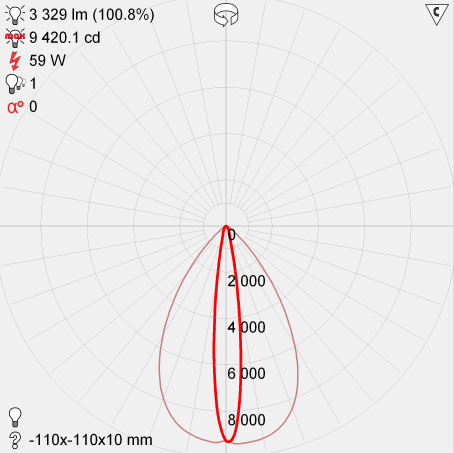

Lumen Output

3329LM

Finishing

WHITE

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LIGHTFORMS

UP/DOWN WALL LIGHT

INDOOR LIGHTING

A compact and versatile cylindrical light source with a huge range of optical options. This including an indirect lighting option, which despite expectation is perfectly even on the ceiling. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine but always in the classic and clean cylindrical form. Control gear is mostly integral and the full range of extras is available - sensors (CP, Simmtronic, Hytronik, Tridonic + Others), emergency, daylight harvesting, Casambi, Power over Ethernet (PoE) & many other integrated additions.

IGUZZINI

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

Direct light luminaire, designed to use monochrome LED lamps. Ceiling- and wall-mounted. Consists of a body and supports for installation (to be ordered separately). Extruded aluminium boy, with zamak die-cast end caps complete with silicone seals. Coated with liquid acrylic paint with a high level of weather and UV ray resistance. The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. Complete with multi-LED power plate in Warm White 3100K with 24V dc electronic circuit (ballast to be ordered separately); 24V smart driver allowing constant light flow emission despite variations in the input voltage (from 30V dc to 16V dc). Fitted with a PMMA diffusing filter and optic with plastic (methacrylate) lens for Wall Grazing lighting. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN 60598-1 standards and particular requirements. BH17: 37 surface Full Remote - 12 Warm White LEDs - 24V dc - L=1056mm - Wall Grazing Optic

ENDO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Mini recessed downlight come with fixed/adjustable two-in-one function. Luminaire frame made of aluminium matt white and the body is matt black. DIMENSION: L:100 W:28 H:18mm.
