ACCLAIM

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

ADLD2-ADCE-AOPK-ADWS

Ease of installation and outstanding flexibility are two standout features of Adapt Linear™. These smart indoor fixtures are quick to ship, quick to fit and able to change - in a word: Adaptable. The built-in link cables can retract to allow fixtures to either be directly abutted or set at angles up to 45°. This makes daisy-chaining quick, simple and responsive. Numerous high-CRI color temperatures of white are available together with a wide range of optics. Every model also features PowerSwitch Technology™, which provides onboard switchable power outputs at 5W or 10W per linear foot: Brighter, shorter runs - Check. Less bright, longer runs - Check. Control is via 0-10V (sink or source) and all standard mains supply voltages are supported.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

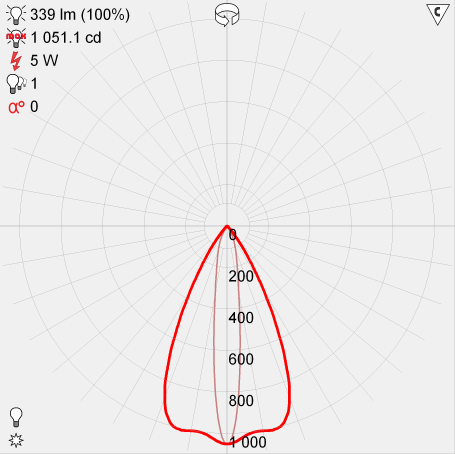

Lumen Output

339LM

Finishing

ALUMINUM

IP Rating

IP66

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 3 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.500 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 160 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

PENDANT

INDOOR LIGHTING

Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 294 stripled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 2.3 kg. The power supply cable is included and features a 4.85 m length. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
