Product Detail | Bloxlimited

ACCLAIM

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

LNJA-COLG-OPTG

Part of the extensive Linear One® family, these attractive aluminum-bodied, natatorium-ready (IP66) linear fixtures are available in 1’ and 4’ lengths and are easily interconnected in series to simplify installation. Flexibility is key, with a wide choice of configuration combinations, including: multiple emitter types, a full range of TIR optics, plus glare shields and louvers. All of which are fulfilled through our Acclaim Modular system in Los Angeles to ensure industry-leading delivery times. Smooth single-channel dimming is delivered under 0-10V control. The internal auto-sensing power supply within each unit can accept mains inputs between 100 to 277VAC at 50 or 60Hz.

Specification

Power

12W

Color Temperature

3000K

Light Source Type

LED

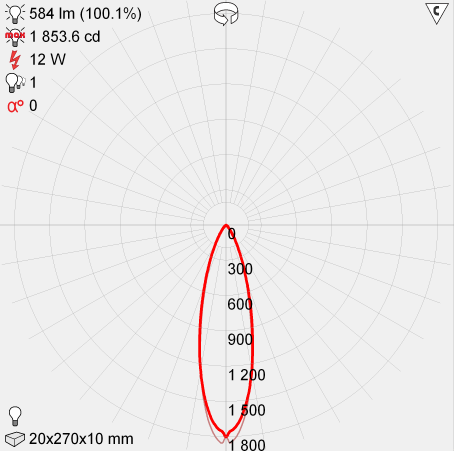

Lumen Output

584LM

Finishing

ALUMINUM

IP Rating

IP66

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

IGUZZINI

WALL LIGHT

OUTDOOR LIGHTING

Wall-mounted luminaire with Warm White LED lamps, AF (Down) optic Consists of an optical assembly, a top glass, a bottom glass and a cover guard to be purchased separately. The optical assembly is made of an aluminium alloy, subjected to a multi-step, pretreatment process in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nanostructured silane layer).

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 120 stripled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.320 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.220 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions

EWO

POLE LIGHT

OUTDOOR LIGHTING

A–Series Outdoor Pole light made of die-cast aluminium material and polyester powder coating finish. Anthracite finish color and safety glass. Luminaire available in Pole mount and Wall mount version. Suitable for Building area, high bay, street or walkway lighting application. IP66, IK08
