The LS9405LED has been specifi cally engineered for use in fountains and other underwater features. When high output is required, it can be deployed in its full output, 2W confi guration; If a dot of light is required, it can be set as low as 0.2W, (either by the factory or in the fi eld). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. Constructed in part from 316 Marine Grade Stainless Steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlusTM surface treatment as standard. The LS9405LED has been specifi cally engineered for use in fountains and other underwater features. When high output is required, it can be deployed in its full output, 2W confi guration; If a dot of light is required, it can be set as low as 0.2W, (either by the factory or in the fi eld). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. Constructed in part from 316 Marine Grade Stainless Steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlusTM surface treatment as standard.

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.

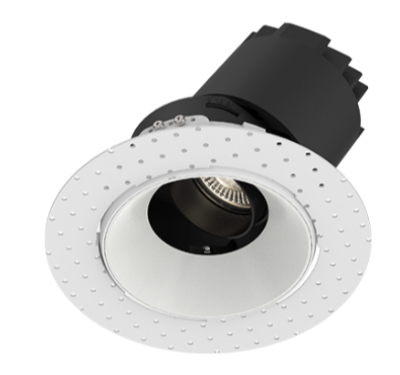

Round recessed trimless downlight (Easy Installation) made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; 0-10V Dim Driver; System Power 21W; measurements Ø96mm x 131mm; ceiling cutout of Ø108mm with a trimless mounting; ceiling thickness 1-25mm; rotation 355° and pivot max. 30°; CCT 2700K with a System luminous flux of 1600lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min.

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 0.9 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 129 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
