LIGHTFORMS

Recessed downlights luminaire body made of aluminium heat-dissipating, carbon-fibre-reinforced semi crystalline techno polymer with a thermal conductivity equal to that of stainless steel and high resistance to impact and sub-zero temperatures, and to corrosion even in harsh environments (saline). Trim in AISI 430 stainless steel, laser cut, machined and finished. IP66.IK08.

DASH 50 Recessed: D5R01140-930HPF-WO

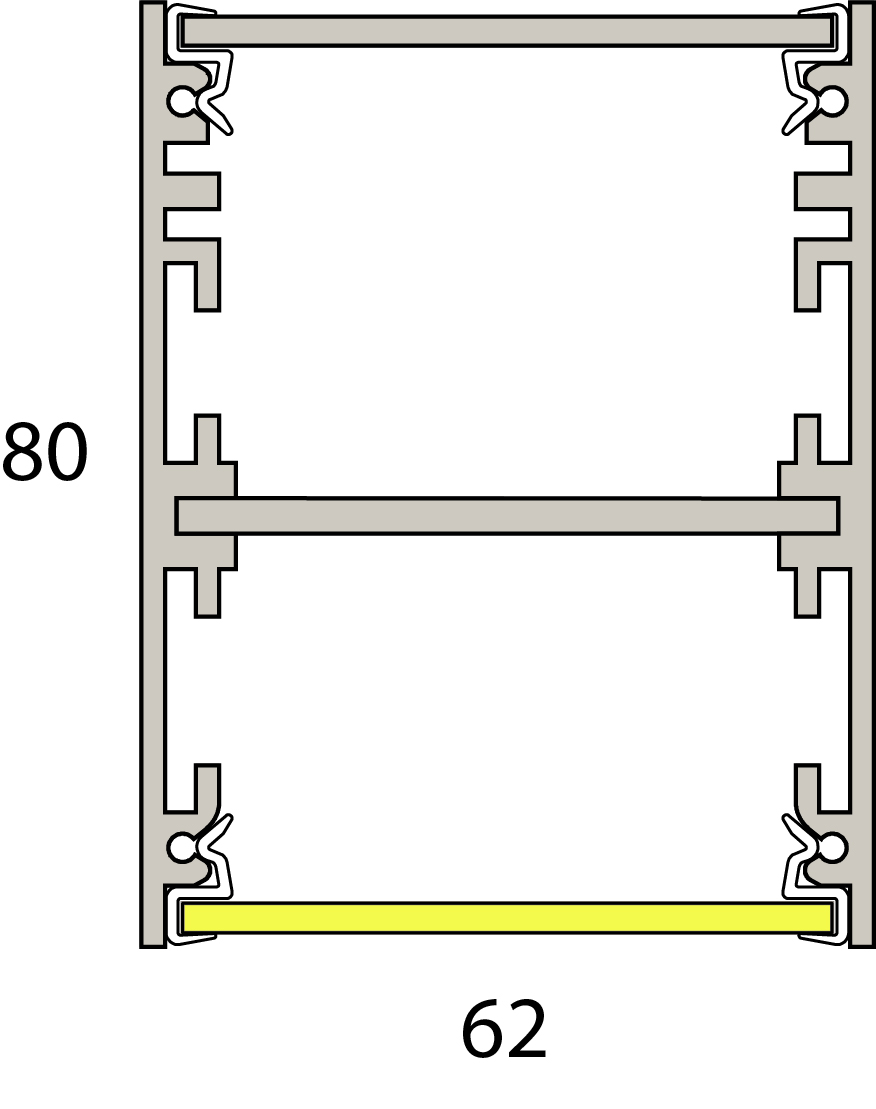

Recessed LED luminaire with direct beam made of high-quality extruded aluminium profile; white powder-coating finish – textured matt (RAL 9016); ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 29W – High Power; Dimensions of the profile channel (LxWxH): 1140mm x 63mm x 125mm; ceiling cutout of 1135mm x 57mm with a narrow mounting trim; luminaire's weight is approximately 2500g; CCT 3000K with a System Luminous Flux of 2440lm; high color rendering at an index of CRI>90; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) opal; degree of housing protection IP20; RG<1 (EN62471); protection class I

Luminaire made of copper and stainless steel. Opal glass with screw neck. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection Lampholder E 27. Safety class I. Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water, r – Safety mark c – Conformity mark.

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.
