LIGHTFORMS

Compact 7.4 mm square cross-sectional size Custom lengths available in every 25mm increment, up to 1508mm Selectable between both or one side cable feed, open end or connector

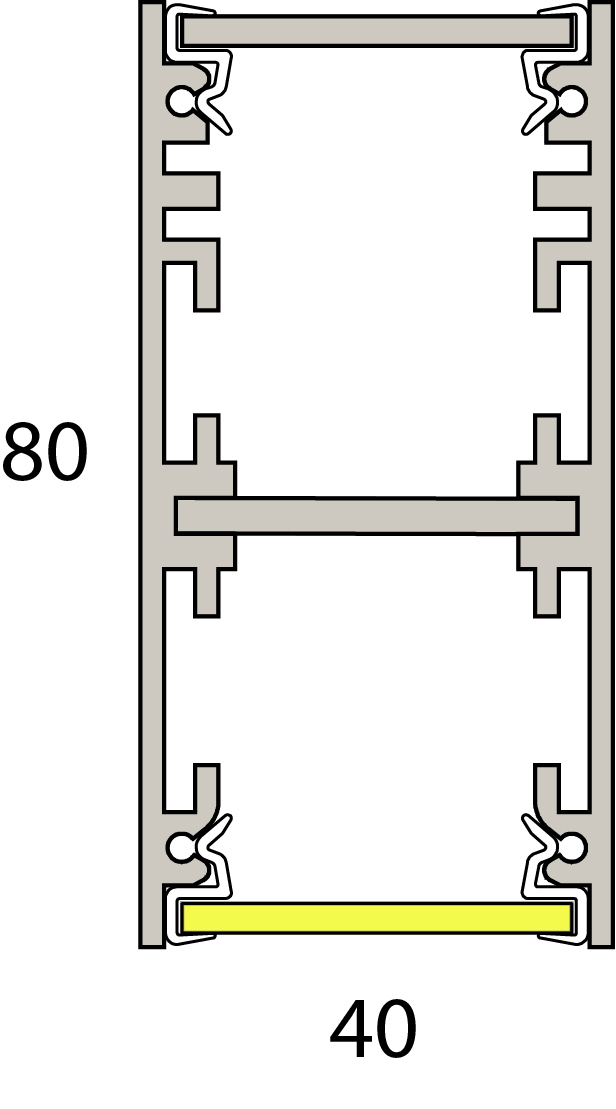

Pendant LED luminaire with direct/indirect beam made of high-quality extruded aluminium profile; black powder-coating finish – textured matt (RAL 9005); luminaire incl. white canopy (110mm x 65mm x 36mm) with transparent feeder cable as well as cable hangers and quick-release clamps for stepless regulation of mounting height; ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 32W – Low Power; Dimensions of the profile channel (LxWxH): 1411mm x 50mm x 80.5mm; luminaire's weight is approximately 4200g; CCT 3000K with a System Luminous Flux of 3649lm; high color rendering at an index of CRI>90; Binning initial <= MacAdam 3; after a lifetime of 50000h L80 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) opal; degree of housing protection IP20; RG<1 (EN62471); protection class I

Decorative elements and reflector in solid bronze are treated with a transparent protective layer that maintains the color and ensures quality and durability. Die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 06. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 5W; Power supply: 24Vdc; Lumen output at source: 488 lm (3000K, 5W, CRI 80); Delivered lumen output: 352 lm (3000K, 34°, 5W, CRI 80); 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 11°: optical system consisting of a high-efficiency TIR lens; CRI Colour Rendering Index: 80;
