LED LINEAR

SURFACE LINEAR LIGHT
OUTDOOR LIGHTING
XOOLIGHT RGB HD20

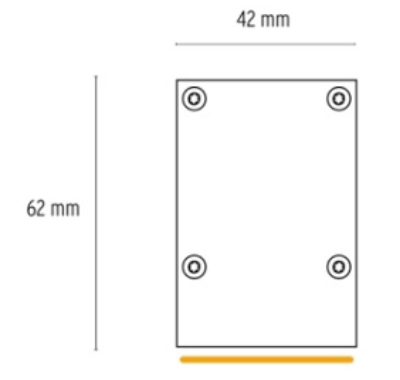

Sleek design luminaire for general lighting manufactured to length. Available as pendant, surface and recessed. Pleasing form factor of 42mm*62mm. 3 different mounting possibilities for homogeneity throughout a building. It is therefore possible to utilize the same product at different locations using different construction types. Freely scalable up to 4m.

Specification

Power
20W/M
Color Temperature
RGB
Light Source Type
LED

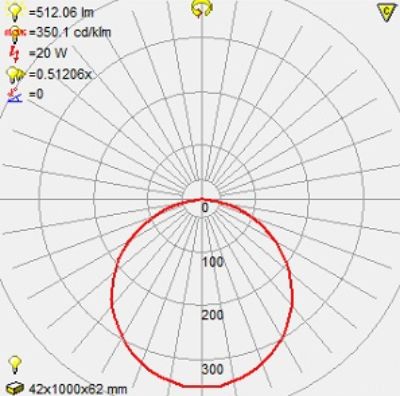

Lumen Output
570LM/M
Finishing
GREY
IP Rating
IP67
Color Rendering
CRI 90
Driver
DMX 512

See more

WE-EF
SPOTLIGHT
OUTDOOR LIGHTING

IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. For 2200 K version available on request, except [EES] distribution.

LINEALIGHT
FOOT LIGHT
OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The super warm LED light source with a asymmetric wallwasher light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 136 lm, with a 136.0 lm/W nominal luminous efficacy. The device body is made of aluminium 6026 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of silicone resin. The ingress protection degree is IP66.

LIGHTFORMS
WALL LIGHT
INDOOR LIGHTING
Lightplane Linear is a compact and streamlined luminaire that features integral drivers along with a high impact satin diffuser lens. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White.
LED LINEAR
LINEAR GRAZER
OUTDOOR LIGHTING

Outdoor linear Wall washer housing made of die cast aluminium. A multitude of ultra-fine Nano Optics shape light with pinpoint accuracy, directing every beam exactly where it’s needed. This results in crisp, glare-free illumination that enhances visual comfort and performance. IP67
