LED LINEAR

The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.  Colour: silver grey , all exterior parts are stainless steel, polycarbonate cover, with partial frosting for uniform light diffraction, silicon gasket, with connection coupling and 3‑pin connector on the right, tilt range: 220°, cable gland: M16 with 1 m cable H05RN‑F3G1, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 20° / 88°, luminous flux: 585 lm, wattage: 11 W, delivered lumens 53 lm/W, protection type IP65, protection class I, impact resistance IK10, windage area 0,025 m², dimensions (L×H×W): 641 × 43 × 40 mm, weight 1.5 kg

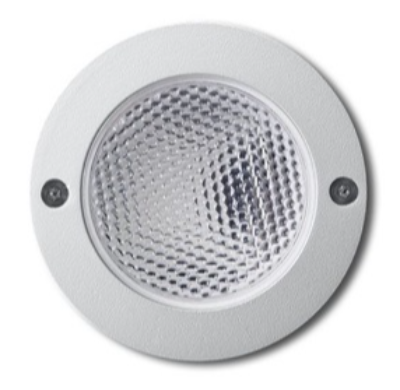

DOT family is a range of small recessed wall luminaires with LED light sources. The glare-free cover enables DOT to be installed where comfortable illumination is required. Fitted with world renowned LED manufacturer DOT is highly efficient with low energy consumption. DOT is available in four different design with interchangeable front covers in both square and round shapes. The very small and shallow housing allow the installation of the fixtures in wall or step that have limited recessing depth. DOT is regularly used to illuminate stairways and pathways where directional low level light is preferred.

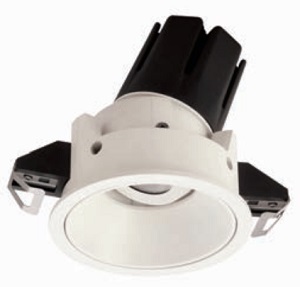

Recessed adjustable downlight luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

Single emission recessed downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.
