LED LINEAR

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

ADONIS ARCHITECTURAL RGBW OPTICS HD20 10D

Miniaturized design meets architectural scales: Its exceptional integration makes ADONIS ARCHITECTURAL an excellent choice for grazing applications and direct illumination on façades and ceilings. A multitude of options include several power levels and CCT plus a variety of light engines ranging from static white to RGBW. Polyurethane is utilized in ADONIS Architectural to make it more resistant to impact from salt water UV-light and solvents. High protection against vandalism thanks to a robust, powder-coated aluminium profile with an IK10 certification.

Specification

Power

20W/M

Color Temperature

RGBW-4000K

Light Source Type

LED

Lumen Output

1180LM/M

Finishing

ALUMINIUM

IP Rating

IP67

Color Rendering

CRI 95

Driver

DMX 512

DALITEK

CONTROL SYSTEM

220V ± 10% 50Hz Single phase 20A. Output: 4 channels of 5A output trailing edge phase cut control (not applicable to inductor transformer dimming). Maximum total load: 20A. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure)

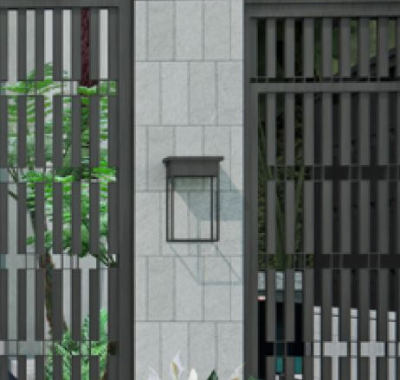

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire made of copper, brass and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz. Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK04. Protection against mechanical impacts < 0.5 joule r – Safety mark, c – Conformity mark.

PUK

DISPLAY LIGHT

OUTDOOR LIGHTING

Diam. 45 mm micro-projector for external use, ideal to light bushes, flowerbed and gardens in general. Body made in turned and anodized aluminum. In horizontal axis it can be oriented up to 30° down and up to 90° up. Remote 24V DC driver needed, with 1 x CREE “XPG2” LED. IP66 rating.
