LIGHTFORMS

RECESSED LINEAR LIGHT
INDOOR LIGHTING
LF157090

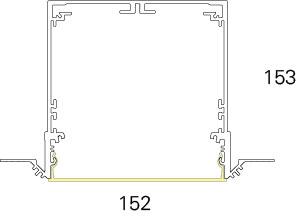

Lightplane 6 Recessed is a large recessed slot light available either with a small 12.5mm trim or in a trimless version. The luminaire can be installed both vertically and horizontally to form continuous or individual rows. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+White.

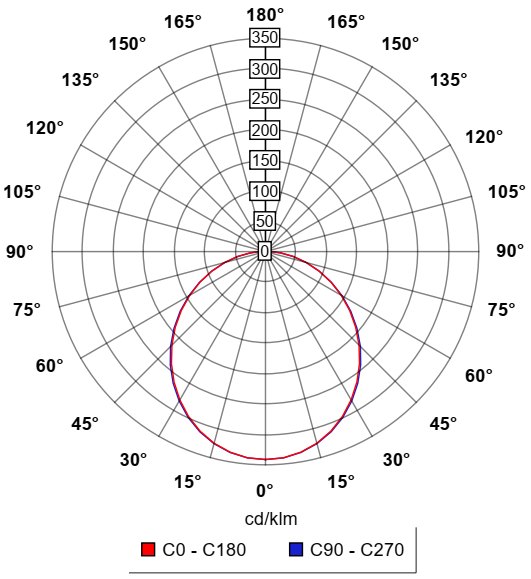

Specification

Power
74.4W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
5218LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Honeycomb accessory and IP44 available upon request.

EWO
BOLLARD
OUTDOOR LIGHTING
Outdoor Bollard made of die-cast aluminium housing, pole made of extruded aluminium profile. Finish polyester powder coating in silver grey color. Lens made from PMMA. Various light distributions suitable for walkway and garden lighting application. IP65
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m lenght. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard) with an outer casing, code 99848 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.
