LED LINEAR

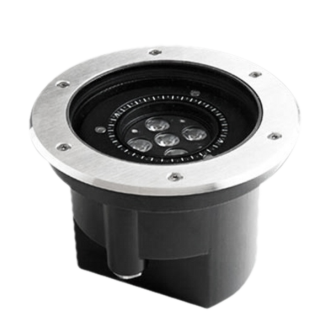

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑15, 0,8 m cable H07RN‑F3G1,5, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 10°, luminous flux: 376 lm, wattage: 5 W, delivered lumens 75 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions: Ø 200 mm, width 124 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Luminaire made of copper and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit, 220-240 V x 0/50-60 Hz DC 176-264 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK05. Protection against mechanical, impacts < 0.7 joule, r – Safety mark, c – Conformity mark.

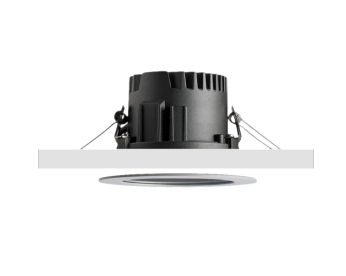

Recessed adjustable spotlight luminaire body made of aluminium housing with white powder coated finish. Different type of bean angles. Black finish and honeycomb accessory available upon request.
