LED LINEAR

LINEAR LIGHT

OUTDOOR LIGHTING

NEPTUNE 6 W930 1044 IP68

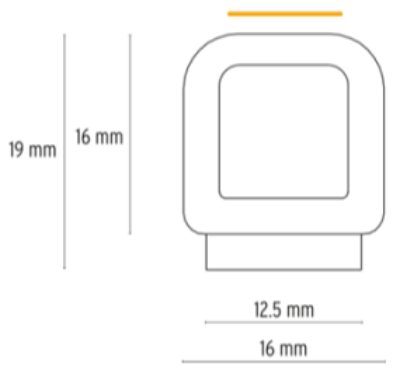

IP68, dot free linear light line with a 16 mm x 16 mm cross section. Opal PVC extrusion body sealed with ultrasonic welded end caps and a twin barrier against water ingress. Special PVC material composition, which is Chlorine resistant for continuous immersion in water with chlorine concentration up to 5 ppm. Length are freely configurable between 544 mm and 5,044 mm in steps of 62.5 mm. Fixture comes with a backside cable exit with 5 m open end cable (chlorin resistant). Light source assembled using state of the art automated Reel-to-Reel production process supporting LED Linear™ Tj Away® thin flexible circuit board technology.

Specification

Power

6.3W/M

Color Temperature

4000K

Light Source Type

LED

Lumen Output

160LM/M

Finishing

WHITE

IP Rating

IP68

Color Rendering

CRI 96

Driver

ON/OFF DRIVER

IGUZZINI

INGROUND UPLIGHT

OUTDOOR LIGHTING

Recessed luminaire applicable to the floor or ground, designed for fitting monochrome white LED sources, for illumination, fixed optic, with incorporated electronic control gear. The round frame has a diameter D=137 mm; the body and frame are made of AISI 304 stainless steel with anti-slip glass (conforming to Class R13 pursuant to DIN 51130), 12mm thickness and internal methacrylate opal diffuser. Stainless steel body coated with black paint.

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 5W; Power supply: 24Vdc; Lumen output at source: 452 lm (3000K, 5W, CRI >90); Delivered lumen output: 284 lm (3000K, 34°, 5W, CRI >90); 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K; Optics: sharp 21°: SHARP optical system consisting of a plano-convex lens for an extremely welldefined light beam, combined with a high-quality technical filter; etc.

IGUZZINI

WALLWASHER

INDOOR LIGHTING

Miniaturised adjustable spotlight with adapter for installation on a 48V Filorail low voltage track. The thermoplastic adapters are designed so they can be installed even in the curved track sections. Die-cast aluminium body with an ideal passive dissipation system to guarantee a long life and effective heat management.
