LED LINEAR

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

VARIOLED OCEANOS HYD HD6 W932/1020-OP IP67

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

Specification

Power

6W/M

Color Temperature

3200K

Light Source Type

LED

Lumen Output

110LM/M

Finishing

WHITE

IP Rating

IP67

Color Rendering

CRI 95

Driver

ON/OFF DRIVER

IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

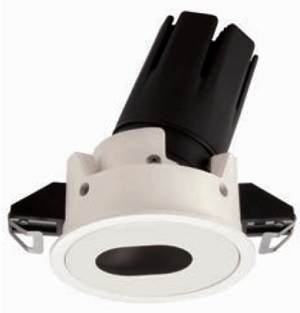

Round recessed luminaire with contact frame. Fixed version. The LED is set back to minimize glare . The main body is made of diecast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector - medium optic. Structure with die-cast aluminium external contact frame with a single white finish. The internal ring is made of thermoplastic available in a range of painted and metallised finishes. Safety glass included Quick and easy tool free assembly

PROLICHT

TRACKLIGHT

INDOOR LIGHTING

puristic design · Modular construction, flexible adaptation · Precision reflector for accentuation · Microfaceted, aluminum-coated reflector · highly reflective faceted reflector · aluminum coated for best reflection · passive cooling through optimized heat sink · excellent glare control through optimized luminaire design · powdercoated die-cast body · Flexibly configurable through modular implementation · Rotatability 359°, Swivability 90°, Tiltability 90°

HELVAR

CONTROL SYSTEM

The Digital Addressable Lighting Interface (DALI) Ballast Control Module is an ultra compact DIN rail mounted unit with connections for a DALI Universe, Configurable Inputs-Outputs and an M-BUS network. Using DALI you can connect up to 64 luminaires through a single data connection whilst retaining individual control. This is complemented with four additional channels of Configurable I/O. Power for the DALI fixtures can be supplied from the local distribution board.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 537 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.500 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 160 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
