LED LINEAR

LED NEON TUBE

OUTDOOR LIGHTING

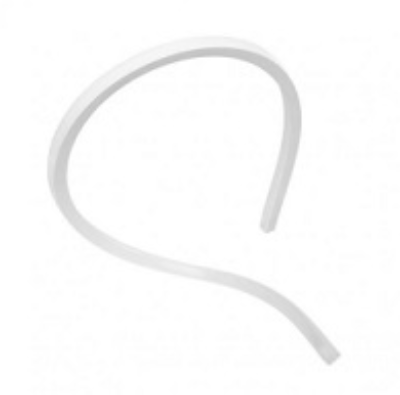

VARIOLED FLEX WHITE HYDRA LD10 W825 1019 IP67

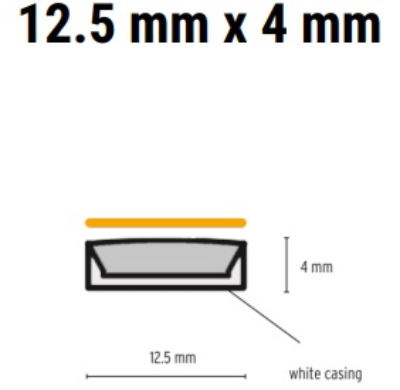

IP67 flexible 24 V linear LED strip up to 7.5 m in length. Polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gazes and protection against abrasion. White lower casing for higher efficiency (better light extraction). Delivered with 200 mm IP67 mini connectors on both ends. The first choice for homogeneous indirect outdoor or humid cove lighting and other non-directly viewed applications with medium luminaire-surface distance requiring IP67 ingress. Constant voltage LED strip with a step measurement of 125 mm and a small LED pitch of 17.86 mm. Assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

Specification

Power

10W/M

Color Temperature

3300K

Light Source Type

LED

Lumen Output

890LM/M

Finishing

WHITE

IP Rating

IP67

Color Rendering

CRI 85

Driver

ON/OFF DRIVER

BEGA

WALL LIGHT

OUTDOOR LIGHTING

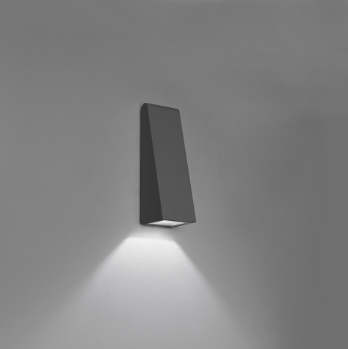

Luminaire made of copper, brass and stainless steel. Crystal glass coated 2 fixing holes ø 5.5 mm, 108 x 108 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-280 V. Safety class I. Protection class IP 64. Dust-tight and protection against splash water. Impact strength IK07. Protection against mechanical. impacts < 2 joule, r – Safety mark, c – Conformity mark.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

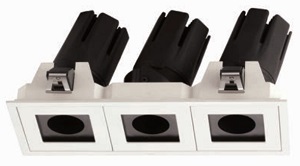

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 6 powerled LEDs. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.390 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.17 m length. The device features protection class III and can be ceiling-mounted, with a 215 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
