LIGHTFORMS

UP/DOWN WALL LIGHT

INDOOR LIGHTING

LF156835

Aquila is a cylindrical fitting with strong form and excellent lighting performance. The construction is an extruded aluminium housing with a flush-fit sand blasted glass lens. For an even distribution across the glass, the led is controlled by a narrow beam LEDil optic. Aquila is fully customisable in size, and available in a full range of colour temperatures, finishes, power feed types and lumen outputs.

Specification

Power

38.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

452LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

MEYER

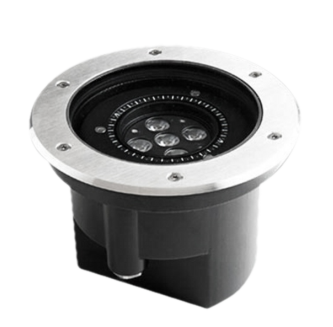

INGROUND UPLIGHT

OUTDOOR LIGHTING

Outdoor luminaire made of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws.

DIMENSION : Ø 250 mm, width 216 mm.

LUCE & LIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.500 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99765 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

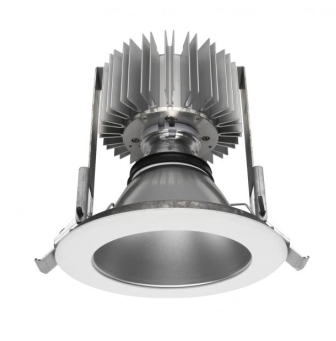

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.35 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.3 m length. The device features protection class III and can be ceiling-mounted, with a 180 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
