LIGHTFORMS

SUSPENDED PENDANT LIGHT
INDOOR LIGHTING
LF156810
Draco is the tallest member of our cylinder lighting family. Its strong long form utilises LEDil reflectors and Osram chips (with 1 and 2 Macadam's Ellipses colour consistency). Draco is available is in a full range colour temperatures and with integral control gear as standard.

Specification

Power
13.6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1435LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

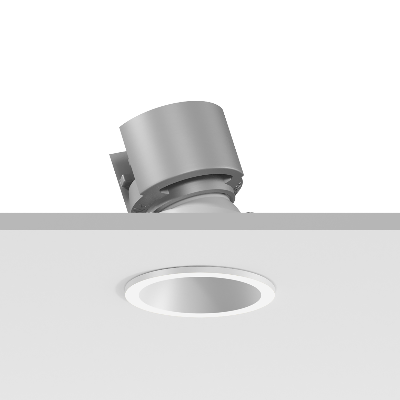

SPARK
FOOT LIGHT
INDOOR LIGHTING

Recessed Step light made of aluminium housing with half shield to avoid glaring.

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.010 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99764 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
BEGA
FOOT LIGHT
OUTDOOR LIGHTING
Recessed location luminaire for installation in walls or stairs. Installation possible in horizontal or vertical burning position. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK06. DIMENSION: (W)170x(H)70x(D)65mm.
LINEALIGHT
FOOT LIGHT
OUTDOOR LIGHTING

Asymmetric wallwasher light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80. The device features protection class III and can be wall lights-mounted, with a 28 mm diameter hole (in plasterboard) with an outer casing, code 84915(for concrete or masonry). The ingress protection degree is IP66; the total weight is of 0.062 kg. The power supply driver is not provided and is to be ordered separately.
