LIGHTFORMS

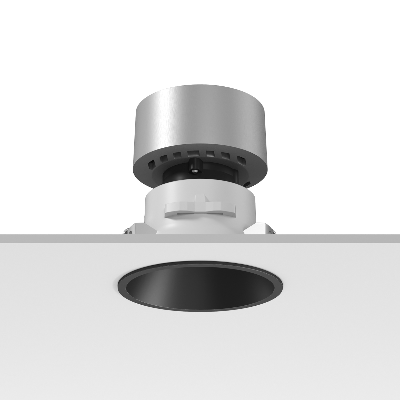

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

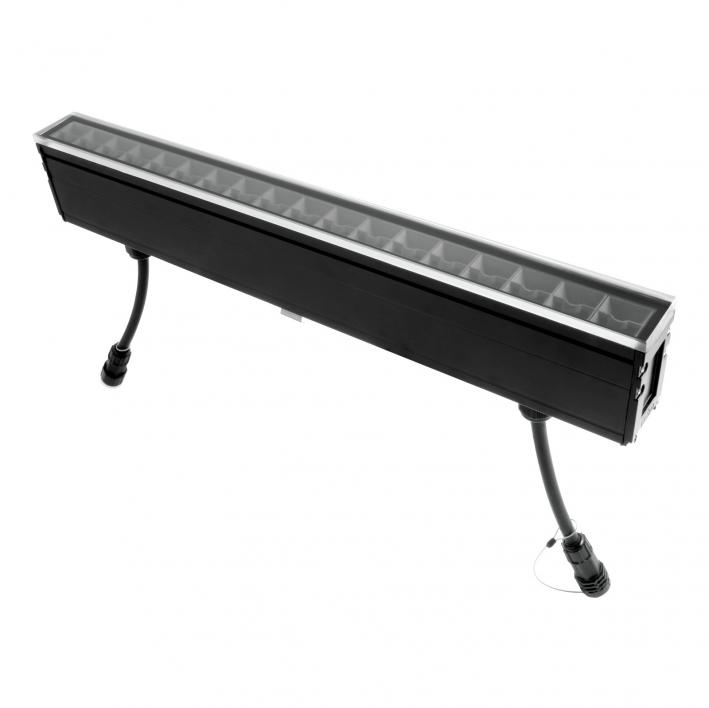

Minilinear: "Copper Free" Aluminium extruded EN AW-6060 with high resistance against corrosion, caps in "Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Miniround: "Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets (Minilinear). Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Recessed adjustable rectangular downlight, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

Media Dot Plus is an easy way to create pixel-controlled, full-color effects or digital media on walls, buildings, monuments—anywhere you can imagine. Our three Media Dot Plus models provide ultra-long daisy-chains and feature integrated color correction for vibrant and true-to-life displays. Select from our versatile installation accessories the deliver a simple, full package for your design vision.
