LIGHTFORMS

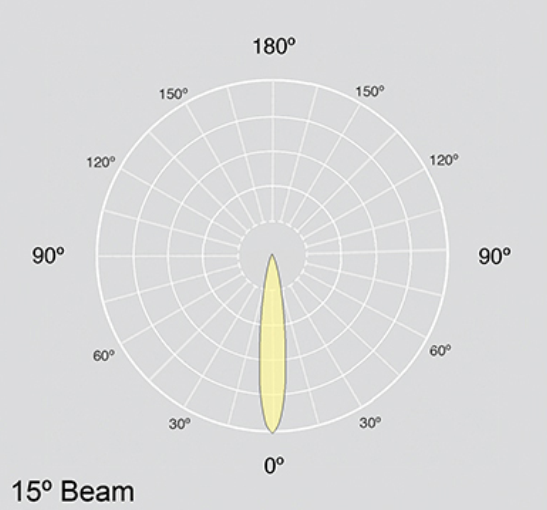

Single emission uplights for outdoor application. The warm white LED light source with a narrow spot light distribution is composed of 1 powerled LEDs. The luminaire body is made of aluminium 6026 and features a anodised aluminum finish, processed by means of 20 µm anodizing. The ingress protection degree is IP67, IK09.

Recessed rectangular luminaire with LEDs. Shaped steel sheet structural compartment with outer rim. The two linear elements with 10 lighting cells, in die-cast aluminium and independently adjustable, can be used to direct the emission with a tilting adjustability of +/- 20°. Metallised thermoplastic high definition optics, integrated in a rear position in the black anti-glare screen.

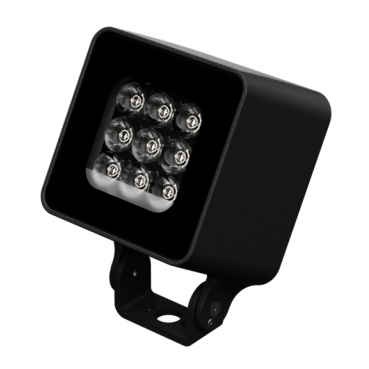

Monocube are floodlights with very compact dimensions and minimalist design that blend discretely into the architecture. The luminaire housings have a smooth surface and are therefore easy to clean and to maintain. Optical film is available as an accessory in order to adapt the light distributions to the exact requirements of a lighting project. Monocube floodlights feature integral LED drivers and can be easily connected to mains voltage power supply. The sizes 3 and 4 can be equipped with Casambi ready drivers and be dimmed via Bluetooth Low Energy technology.

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.
